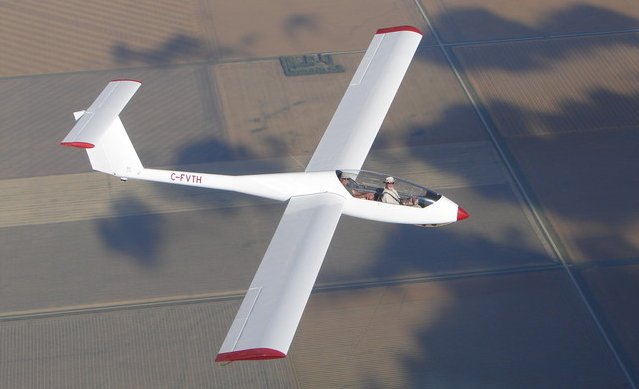

The KR-03A "Puchatek" glider (also known as the "Krosno"), is a tandem two place glider suitable for both winch launch and aerotowing. It has a metal monocoque structure. The cantilever wings are rectangular in shape with a 3 degree forward sweep and are fabric covered on the trailing edge. The glider has a T-tail with fabric covered control surfaces. The main wheel is ona hyraulic shock absorber and has disc brakes. The glider has both front and rear skids. Some gliders are equiped with a front tire instead of the front skid. The Krosno has both front and c. of g. hooks.
Description SI Imperial
-------------------------------- -------------- ------------------
Length 8.63 m 28.3 ft
Span 16.4 m 53.8 ft
Height 1.65 m 5.4 ft
Best average L/D is 27 47 kts
Minimum sink speed 42 kts
VNE 200 km/h 107 kts
Rough air speed 150 km/h 80 kts
Maximum winch launch speed 125 km/h 67 kts
Maximum aerotowing speed 130 km/h 70 kts
Maximum dive brake speed 200 km/h 107 kts
Stall speed at minimum mass 57 km/h 31 kts
Stall speed at maximum mass 72 km/h 39 kts
Green arc 80-150 km/h 43-80 kts
Yellow arc 150-200 km/h 80-107 kts
Red line 200 km/h 107 kts
Maximum weight approach speed 90 km/h 48 kts
Wing area 19.44 sq m 209.2 sq ft
Aspect ratio 13.9 13.9
Wing chord constant 1.2 m 3.9 ft
Tailplane span 3.5 m 11.5 ft
Maximum all-up mass 540 kg 1190 lbs
Maximum wing loading 27.80 kg/sq m 5.69 lbs/sq ft
Maximum mass of non-lifting parts 171 kg 377 lbs
Dihedral angle 4 degrees
Sweep angle 3 degrees
Wing to fuselage incidence 5 degrees
Wing aerofoil FX S02/1-158
Tailplane aerofoil FX 71-L-150/30
Manoeuvring load factors +5.3/-2.65
Minimum solo pilot weight 66 kg 146 lbs
